AP100 FAMILY

AP101 GNSS RTK/INS Module
**Multi-constellation GNSS+INS integration**
**RTK**
**High positioning update rate**

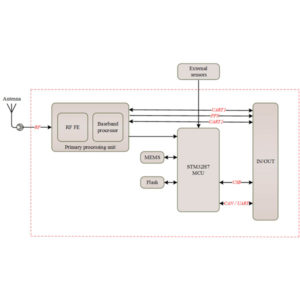

Block Diagram of AP101 GNSS RTK/INS Module — AP101 GNSS RTK/INS Module
**Multi-constellation GNSS+INS integration**
**RTK**
**High positioning update rate**

AP104 GNSS RTK/INS Module With S-band Support
**Multi-constellation GNSS+INS integration**
**RTK**
**High positioning update rate**
**Heading + roll/pitch determination**
**NavIC L5 + S bands**

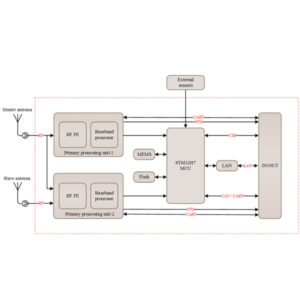

Block Diagram of AP104 GNSS RTK/INS Module With S-band Support — AP104 GNSS RTK/INS Module With S-band Support
**Multi-constellation GNSS+INS integration**
**RTK**
**High positioning update rate**
**Heading + roll/pitch determination**
**NavIC L5 + S bands**

AP105 GNSS RTK/INS Module With Heading
**Multi-constellation GNSS+INS integration**
**RTK**
**High positioning update rate**
**Heading + roll/pitch determination**

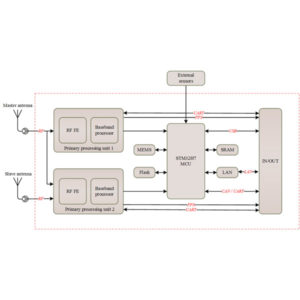

Block Diagram of AP105 GNSS RTK/INS Module With Heading — AP105 GNSS RTK/INS Module With Heading
**Multi-constellation GNSS+INS integration**
**RTK**
**High positioning update rate**
**Heading + roll/pitch determination**

AP106 Multi-GNSS RTK/INS Module With Extended Functionality
**Multi-constellation GNSS + INS integration**
**RTK**
**High positioning update rate**
**NavIC L5 band**

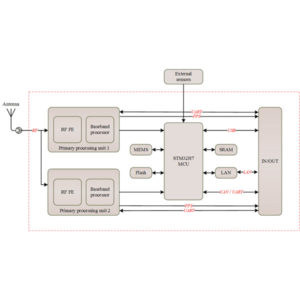

Block Diagram of AP106 Multi-GNSS RTK/INS Module With Extended Functionality — AP106 Multi-GNSS RTK/INS Module With Extended Functionality
**Multi-constellation GNSS + INS integration**
**RTK**
**High positioning update rate**
**NavIC L5 band**

General Characteristics of AP100 Modules

Single/dual-antenna high-precision OEM GNSS receiver modules ofAP100 family provide precise millimeter-level RTK positioning combined with 3D attitude (yaw, pitch, roll) determination.

With our OEM modules, navigation data can be concurrently received from: GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b, BeiDou B1/B2, NavIC(IRNSS) L5/S-band and SBAS L1.

The modules will be the best solution for a wide range of navigation applications owing to small power consumption, industry standard size (71x46x10 mm) and easy integration.

Moreover, the raw measurement data are available for user’s secondary processing, as well as API functions for own developments. Using Absolute Precision OÜ open platform, users are free to create an effective solution for each specific application.

STM32H7 MCU is available on-board for the user’s developments
On-board 9-axis MEMS IMU
Loosely-coupled GNSS/INS integration algorithm
Aided inertial navigation support optional

Based on NTLab chipsets: 4-channel RF FE ASIC and navigation processor
Raw measurements data output: code and carrier phase measurements
Industry standard size (71x46x10 mm)
Easy and fast integration

	АР101	АР104		АР105		АР106
	АР101	Master antenna	Slave antenna	Master antenna	Slave antenna	АР106
GPS	L1, L2	L1, L2, L5	L1, L2	L1, L2	L1, L2, L5	L1, L2
GLONASS	L1, L2	L1, L2	L1, L2	L1, L2	L1, L2	L1, L2
Galileo	E1, E5b	E1, E5a	E1	E1, E5b	E1, E5a	E1, E5a
BeiDou	B1, B2	B1, B2	B1	B1, B2	B1, B2	B1, B2
NavIC	–	L5, S-band	–	–	–	L5
SBAS	L1	L1	–	–	–	L1
Orientation angles accuracy(RMS)*:
Yaw	2°	0.1°		0.1°		2°
Pitch	2°	0.2°		0.2°		2°
Roll	2°	1°		1°		2°
Interfaces	2 x UART, 1 x USB	3 x UART, 1 x USB (or 2 x UART + 1 x CAN), 1 x Ethernet, 1 x USB
Interface protocols	RTCM 3, NovAtel OEM, NMEA-0183, NTL Binary
Power consumption	<0.9 W	<1.8 W		<1.6 W

*On 2 m length baseline for AP104 and AP105. AP101 and AP106 determines orientation angles by loosely-coupled GNSS/INS

integration algorithm (on-board MEMS sensor)
